Reaction and Type - Supports

-

ROLLER SUPPORTS

Roller supports are free to rotate and translate along the surface upon which the roller rests. The surface can be horizontal, vertical, or sloped at any angle. The resulting reaction force is always a single force that is perpendicular to, and away from, the surface.
Roller supports are commonly located at one end of long bridges. This allows the bridge structure to expand and contract with temperature changes. The expansion forces could fracture the supports at the banks if the bridge structure was "locked" in place.
Roller supports can also take the form of rubber bearings, rockers, or a set of gears which are designed to allow a limited amount of lateral movement.
How it looks..
.
Image result for roller supports
Roller support in a Bridge


PINNED SUPPORTS
A pinned support can resist both vertical and horizontal forces but not a moment. They will allow the structural member to rotate, but not to translate in any direction.
Many connections are assumed to be pinned connections even though they might resist a small amount of moment in reality. It is also true that a pinned connection could allow rotation in only one direction; providing resistance to rotation in any other direction. .

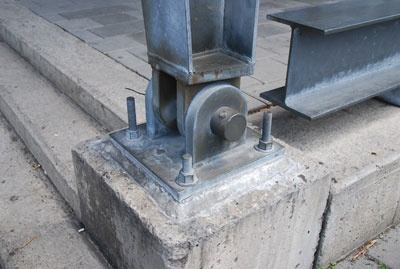

Image result for pinned support
Pinned support

A single pinned connection is usually not sufficient to make a structure stable. Another support must be provided at some point to prevent rotation of the structure. The representation of a pinned support includes both horizontal and vertical forces.

FIXED SUPPORTS
Fixed supports can resist vertical and horizontal forces as well as a moment.
Since they restrain both rotation and translation, they are also known as rigid
supports. This means that a structure only needs one fixed support in order to
be stable. All three equations of equilibrium can be satisfied. A flagpole set into a
concrete base is a good example of this kind of support. The representation of
fixed supports always includes two forces (horizontal and vertical) and a moment.

REACTIONS :




Comments

Post a Comment

Popular posts from this blog

PETRONAS TOWERS

-

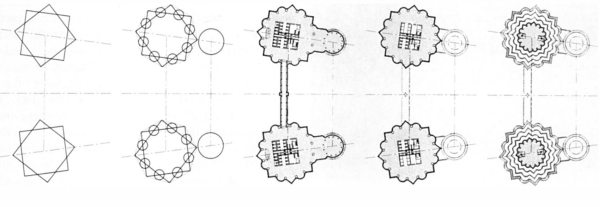

INTRO The Petronas Twin Towers are twin high rises located in Kuala Lumpur, Malaysia. They were designed by Argentinean-American architect Cesar Pelli and built by two separate construction consortiums headed by Hazama Corp. and Samsung Engineering and Construction between the years 1992 and 1997. The Towers have 88 stories each and stand 1,483 feet (452 m) tall. The Council on Tall Buildings and Urban Habitat certified the Towers as the world’s tallest buildings in 1996, based on their structural top. They retained the title until 2004 when the Taipei 101 surpassed them. The project cost US$1.8 billion to build. DESIGNING The design for the PETRONAS Towers was not a written document or a set of drawings for the contractors to follow when building the structure.  It was instead an evolving process that took place over the course of many years.  This enormous amount of communication and the design considerations that were discussed produced a final result that
